Lieu d'origine:
Guangdong, Chine
Nom de marque:
WDF
Certification:
ISO
Numéro de modèle:
WDF-AHP
Nous contacter
Vidéo
Vidéo
Vidéo

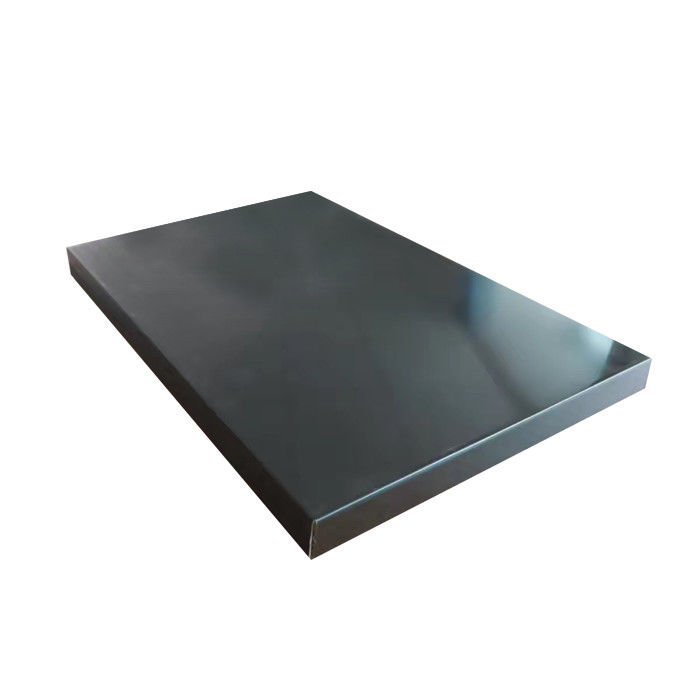

Wood Color Aluminum Honeycomb Composite Panel For Ship Wall Partitions Decorative Wall Roof
WDF Aluminium Honeycomb Panel is a sandwich panel made of two aluminium sheets laminated to a honeycomb core, by using two
components PU glue or exposy and through a thermal laminating process. The honeycomb core is an imitation of natural beehive structure
which is hexagonal shape, thus it's light weighted but strong and firm
Structure:Aluminum Skin+Aluminum Honeycomb Core+Aluminum Skin
| Availability |
| Standard Dimensions |
| 1200*2400mm (other dimensions available on request) Max width 2000mm and Max Length 10000mm |
| Panel Thickness |
| Made to order,thickness 6mm to 200mm |
| Standard Skin Thickness |
| 0.5mm,0.7mm ,0.8mm & 1.0mm other thickness ,alloys,powerder coating & Ral colors available |
At a Glance:
|
RODUCT NAME
|
Aluminum honeycomb panel/metal honeycomb panel/honeycomb sandwich panel
|
|
SKIN MATERIALS
|
aluminum, fiberglass, zinc, carbon fiber, galvanized sheet
|
|
THICKNESS
|
4-200mm
|
|
STANDARD SIZES
|
1250x2500mm, 1500x4800mm
|
|
MAX SIZES
|
1650x12,000mm, 2000x3000mm
|
|
TEMPERATURE RANGE APPLIED
|
-40° to 117°
|
|
FINISH
|
mill finish, RAL colors, wood/stone pattern,anodized, brush,mirror
|
|
STANDARD
|
CN, BS, ASTM
|
|
CAPACITY
|
50K m2/month
|
1. Super flatness even for big size panel up to 2200x11800mm.
2. Light weighte.
3. High fire retardant property as per GB8624 to be classified as A2 & pass BS476 part 4 testing
4. Aluminium honeycomb panel is available in different colors and surface to meet different design requirements.
5. Generally aluminium honeycomb panel is prefabricated as per drawing from customerWDF aluminum honeycomb panels structures deliver:
WDF offers many manufacturing capabilities that can provide a unique sandwich panel solution for your application.
